Stainless manifold kit 7-circuits

põrandaküte-kollektor-roostevaba
põrandakütte-kollektor-roostevaba

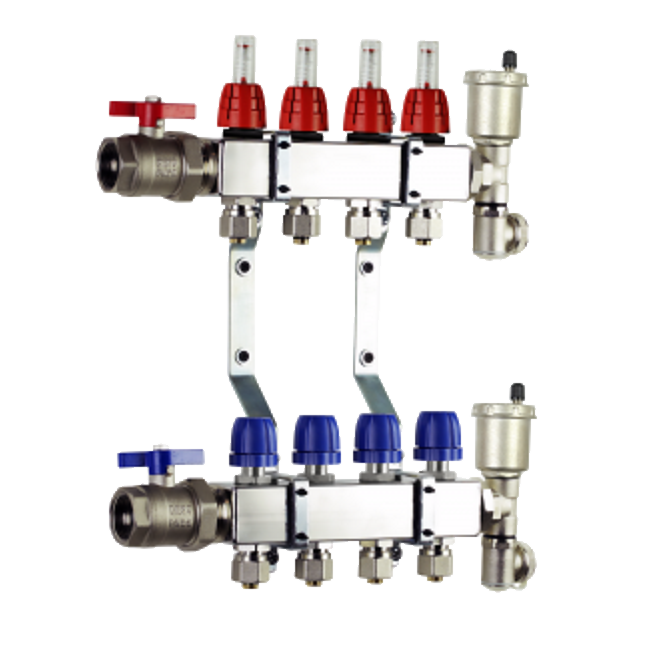

Stainless steel underfloor manifold 7-circuits
Every circuit has regulator
Set includes:
inlet-outlet valves, air vents, rotameters, drain valve, euro cones, wall mount frame
Connection: 1" (1 inch).
Pipe connection: 3/4" (16mm/20mm)
217,56 €

This stainless steel underfloor heating manifold is high quality full set meant to be used even on higher pressure systems. Every circuit has everything to perfectly balance the flow through the underfloor pipes - each circuit has a regulator. Easy to mount and easy to install, as everything needed is included to the set.

Set includes:

  • Manifold
  • Regulators for each circuit
  • Inlet/outlet ball valves
  • Thermometers
  • Air vent valves
  • Drain/filling valves
  • Wall mounting clamp
  • Euro cones 3/4" for DN16 pipe

Technical data:

  • Material: stainless steel
  • System connection: 1"
  • Underfloor pipe connection: Euro cone 3/4"
  • Circuits: 7
  • Max pressure: 6 bar
  • Max temperature: 70°C
  • Flow: 6,01 m3/h
  • Length A = 476 mm
