3-Way valvel TERMOMIX AMV3-25

segamissõlm-3t-ventiil-vexve-amv3
3-way valve Termomix AMV3-25 is a three directional valve meant for hot water systems, to regulate temperature.
39,65 €

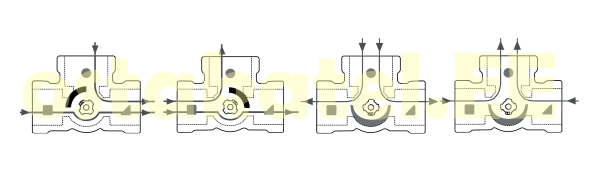

TERMOMIX AMV3-25 is a three way valve meant for hot water systems to regulate temperature and water flow. Those valves can be used as mixing valves but also to redirect water flow. Everything can be changed even when pressurised. Look below.

katel 3t

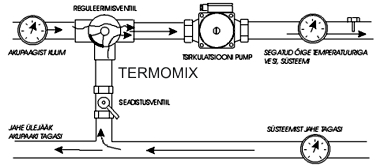

You can adjust the valve according to needs - it can be on installed even on returning side of the system. Thanks to low torque it is easy to control valve with Automix motors to make everything more automated. It can be used both left and right handed systems.

 Technical data:

Connection: 1 inch
Max temp:
110C
Max pressure: 10 bar
Turning angle: 90 degrees
Torque: 0,2Nm for 3 way valve; 0,1Nm for 4 way valve
Material: Brass
