DHW circulation pump Go.Future Z

Wita_Go.future_Z

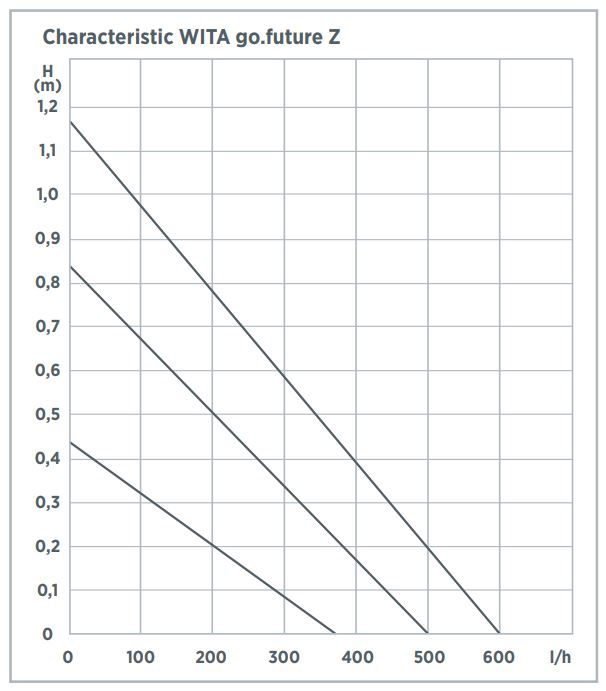

characteristis-wita-go.future-Z-1

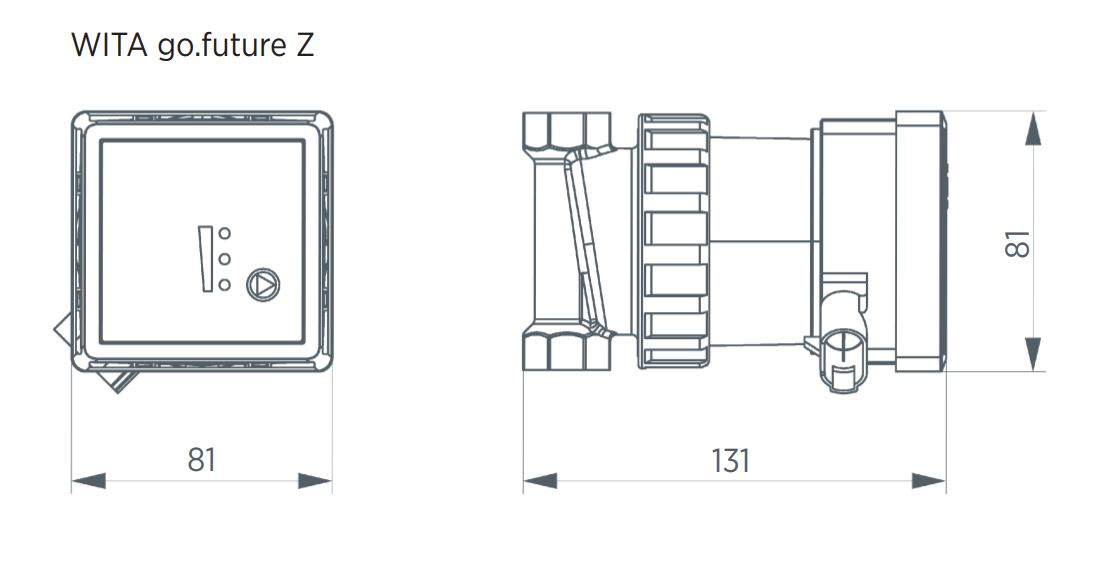

draw-wita-go.future-Z-1
The WITA® High efficiency pumps can reduce energy consumption by up to 80% compared to a standard circulation pump, whilst maintaining the same level of hydraulic power.
110,00 €
Maximum delivery height 1,4 m
Maximum flow 650 l/h
Power consumption 2,5 – 7,0 W
Control 3 Konstantkennlinien
Supply voltage 1 x 230V, 50 Hz
Motor protection no external motor protection required
Protection class IP 44
Ambient temperature 0 °C to +40 °C
Medientemperatur +5 °C to +65 °C
Temperaturklasse TF 65 according to CEN 335-2-51
Systemdruck max. 10 bar
Anschlussgrößen DN 15
Installation length 81 mm
Material pump housing brass
