Circulation pump Go.Future2 60-25 (A class)

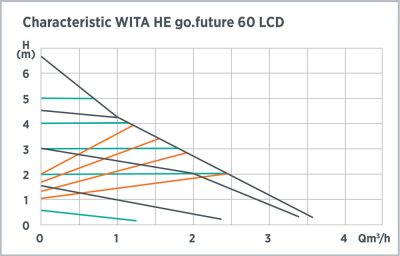

characteristic-wita-go-future-60-lcd-400x256

Go.Future2 60-25 is the newest and most modern pump series from Wita. Perfect alternative for Grundfos pumps. Being extremely low on energy consumption, it helps you to save up to 80% on electricity (compared to old 3-step pumps).

146,40 €

Ask a question about this product

Description

In an average household 10 to 20% of the electricity consumption is caused by using a conventional standard pump. With our series WITA go.future 2 we have developed a circulating pump which shows an energy efficiency index of ≤ 0.20. By using these pumps the energy consumption can be reduced by up to 80% – compared with a conventional circulation pump. The hydraulic power is almost equal to the standard pumps. The pump capacity adapts to the actual requirements of the system because it is working according to the proportional pressure method.

Product specials

Night mode
Display of the current power consumption
Anti-block function
also available with PWM module

Max. pump lift	6,0 m
Max. flow rate	3.600 l/h
Power consumption	3 -42 W
Supply voltage	1 x 230V, 50 Hz
Motor protection	no external motor protection required
Ip rating	IP 42
Ambient temperature	0 °C to +40 °C
Media temperature	+5 °C to +110 °C
Systeme pressure	max. 1,0 MPa
Connection size	DN 15, DN 20, DN 25, DN 32
Installation lenghts	110 mm, 130 mm, 180 mm
Material pump housing	130 mm, 180 mm grey cast iron cataphoresis coated; 110 mm in brass
EEI	≤ 0,204 constant characteristics, 4 proportional characteristics, 4 proportional power characteristics
Special equipment	with PWM entryNight modeVersion with and without power displayas light version available
