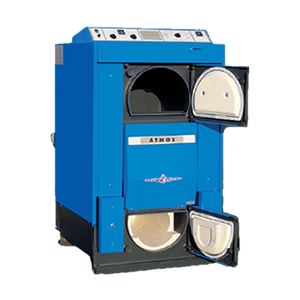

Wood gasification boiler ATMOS DC100

The boilers are constructed for burning wood on the principle of generator gasifying with the use of a gas exhaust ventilator, which withdraws the combustion gases from the boiler, or leads air into the boiler.

8864,00 €

Ask a question about this product

The boiler body is produced as a weldment of 3-8 mm steel sheets. They comprise the fuel hopper, which is equipped at the bottom with a heatproof pipe fitting with longitudinal hole for the combustion gases and passage of gases. The burnout part of the multiple chamber furnace under the fuel hopper is equipped with ceramic pipe fittings. There is a vertical combustion gas duct in the back of the boiler body, which is equipped with a heating valve in the upper section. The upper part of the combustion gas duct is fitted with a gas exhaust outlet for connection to a chimney.

Boiler technical information:
Boiler power: 99 kW
Required chimney exhausted: 35 Pa
Water volume: 294 l
Fuel container volume: 400 dm³
Max. lenght of wood: 730 mm

Height: 1590 mm
Width: 980 mm
Lenght: 1180 mm
Flue pipe diameter: 200 mm
Weight: 780 kg
