Circulation pump MAXI 80-25-180 (A class)

WITA_Delta_Maxi_80

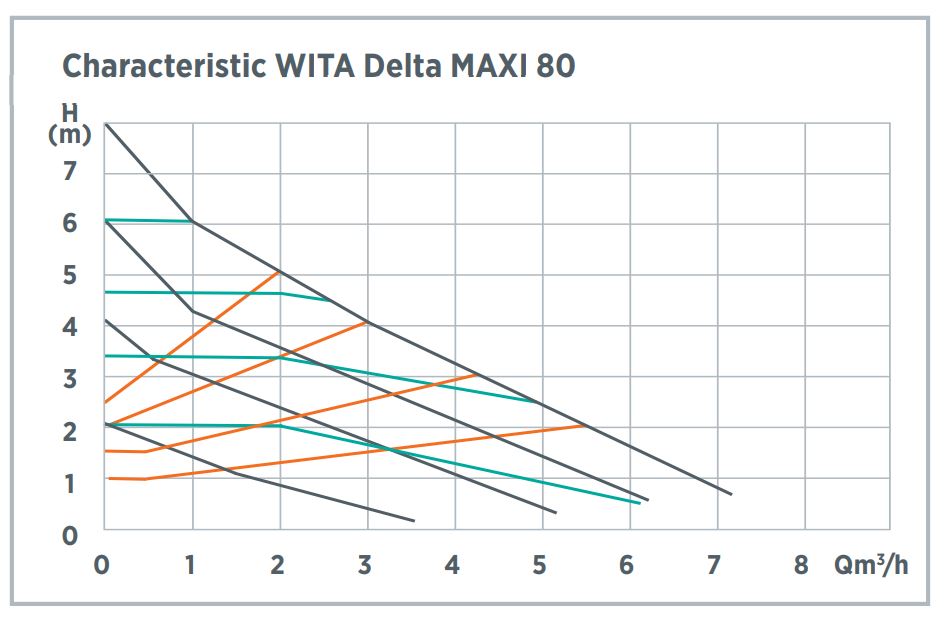

characteristic-wita-delta-maxi-80-400x2566

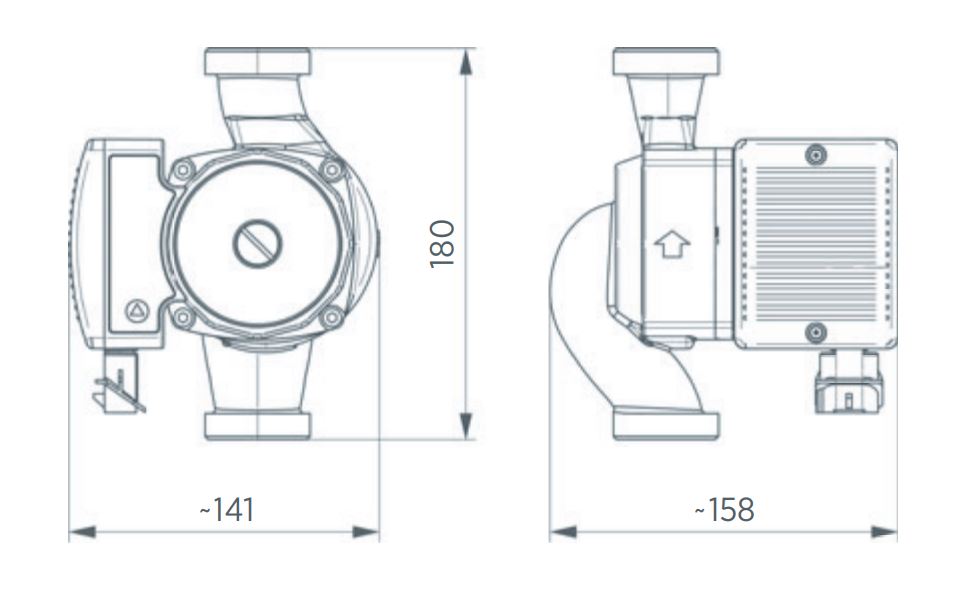

draw-wita-delta-maxi-80-400x256
Wita MAXI 80-25-180 is heavy duty reliable pump, that can handle large volumes of water flow. Suitable for underfloor heating with up to 12 circuits, but also larger radiator heating buildings.
202,32 €

As a material, WITA® processes cataphoresis-coated armature castings and chromium-nickel steel. These proven materials guarantee high resistance and a versatile range of applications. All circulating pumps are supplied with heat insulation shells, seals, coupling plugs or permanently installed cables.

In an average household, 10 to 15% of the electricity consumption is caused by conventional standard pumps. Through the use of the WITA® high efficiency pumps the energy consumption can be compared to a conventional circulation pump. Approximately 80%.
The hydraulic power could be almost kept the same compared to standard pumps.

Special features / Product advantages

  • Highest efficiency through EC permanent magnet motor technology
  • From 3 Watt min. input
  • One-touch menu navigation
  • Pre-selectable control modes constant speed / variable differential pressure
  • Anti-block function
  • Integrated motor protection
  • High start-up safety
  • Simple pipe mounting through a practical key attachment
Max. pump lift 8,0 m
Max. flow rate 7.200 l/h
Power consumption 9 – 78 W
Control 4 constant characteristics, 4 proportional characteristics, 4 proportional pressure characteristics
Supply voltage 1 x 230V, 50 Hz
Motor protection No external motor protection required
Ip rating IP 42
Ambient temperature 0 °C to +40 °C
Media temperature +5 °C to +110 °C
Temperature class TF 110 as per CEN 335-2-51
Max. system pressure 10 bar
Connection size DN 25, DN 32
Installation lengths 180 mm
Pump housing material grey cast iron, cataphoresis coated
Weight incl. insulation 2,9 kg
EEI ≤ 0,23
 Special equipment  Also available with PWM module, Venting program, Keylock
