Wood boiler H449 EKO-D MAX

-10%
H4EKO-D 55kw 5

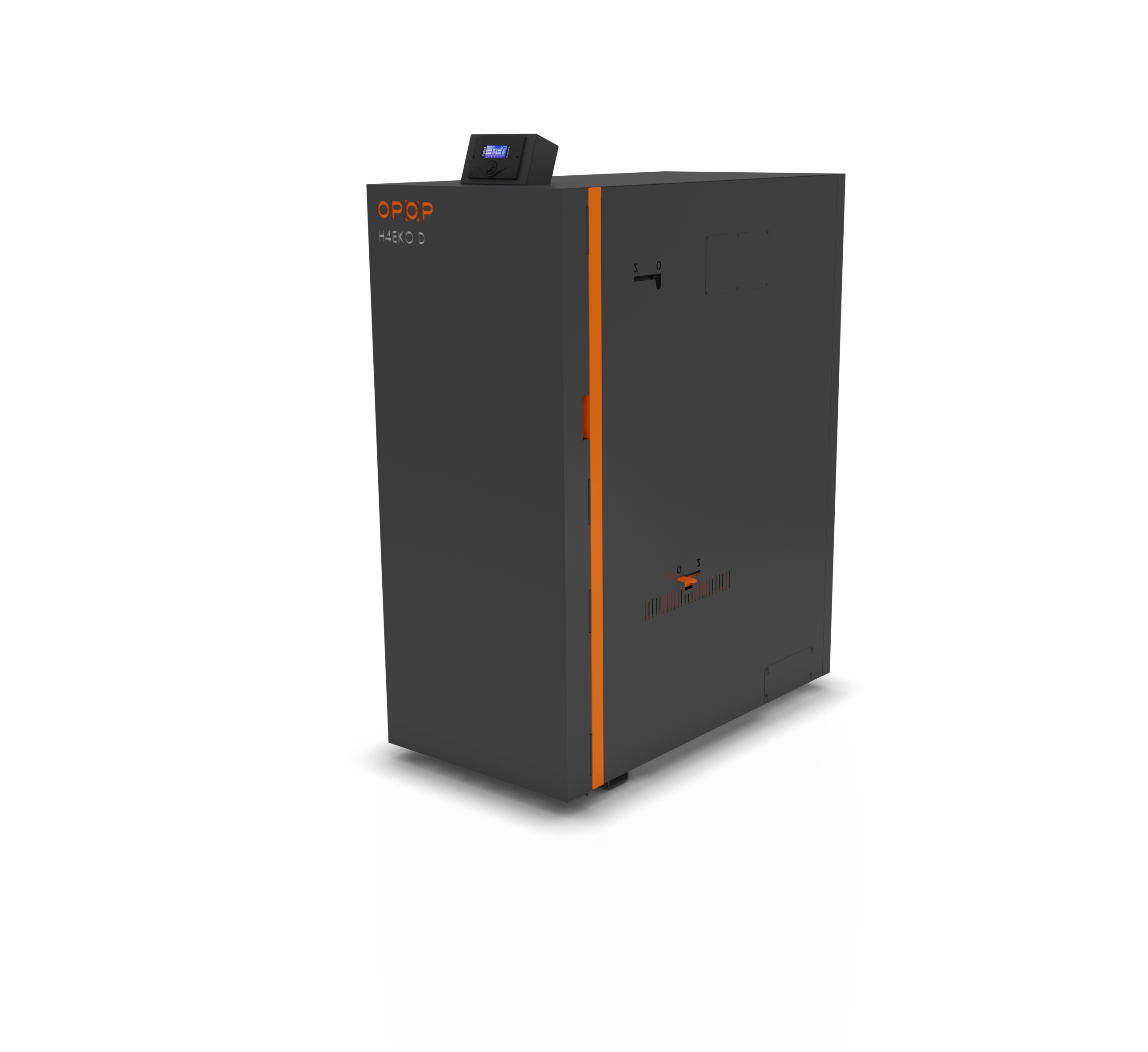

H4EKO-D 55kw perspektiva pravá6

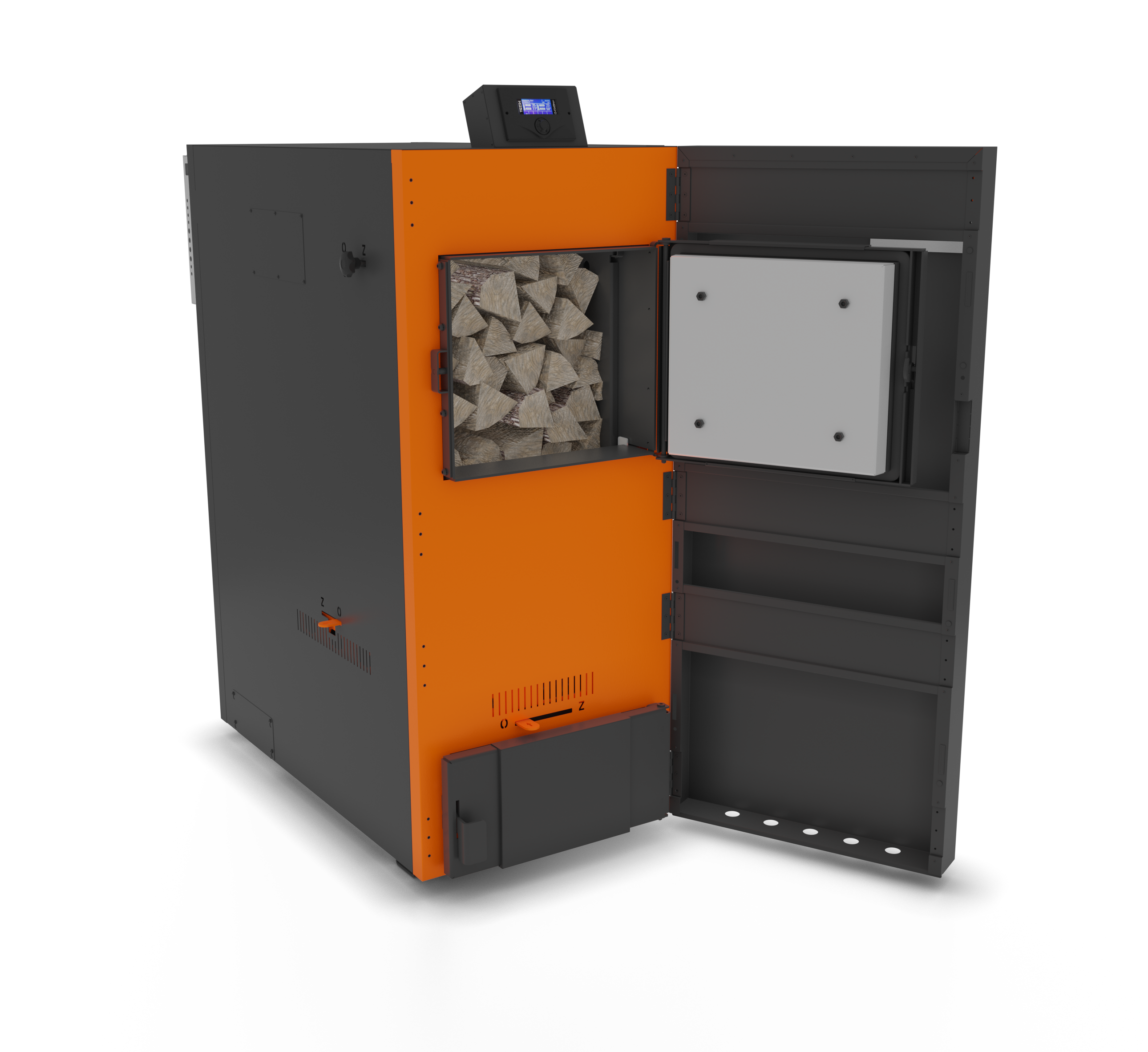

H4EKO-D 55kw perspektiva levá otevřen s dřevem3

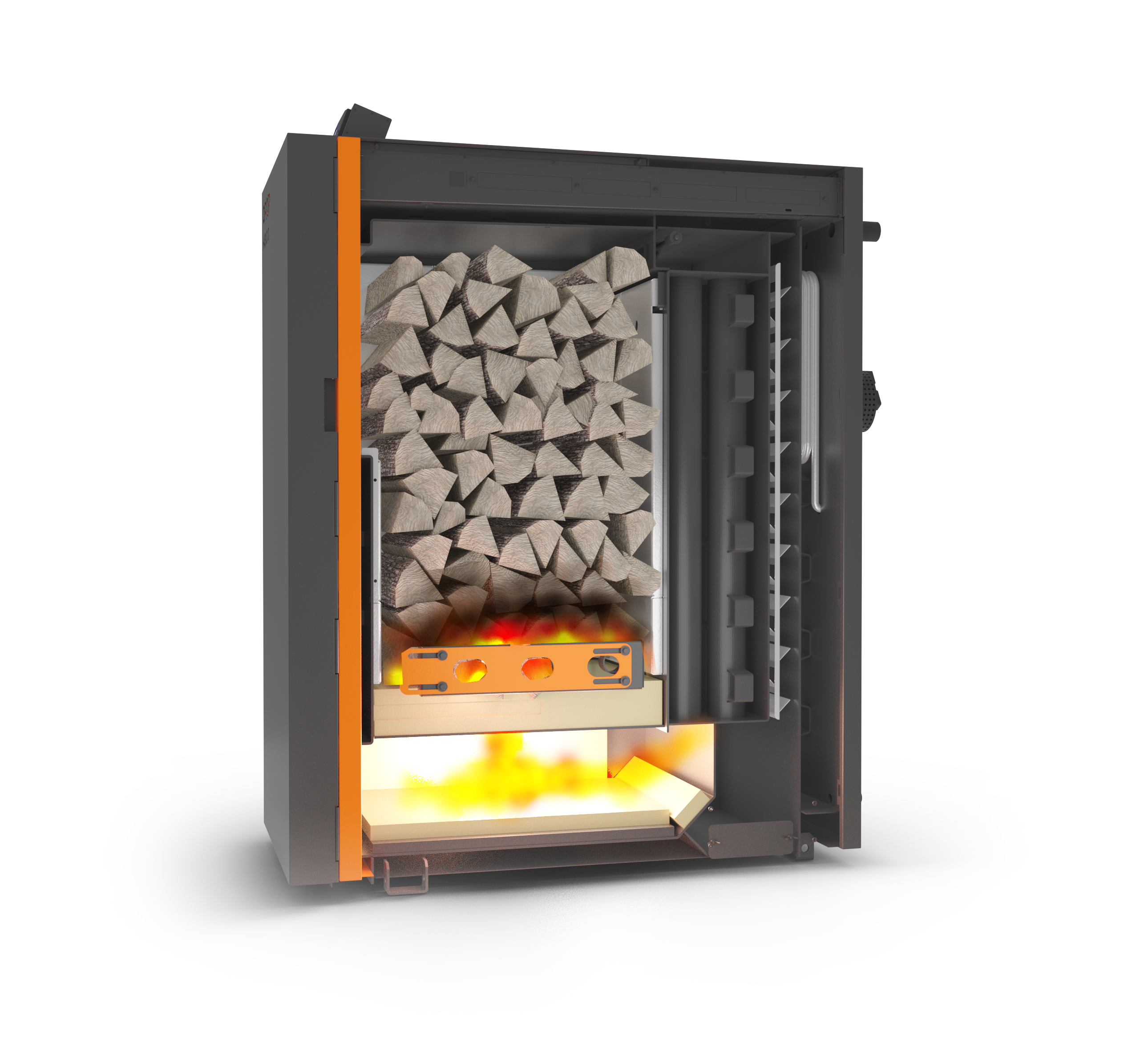

H4EKO-D 55kw cut 26
This is one nice looking wood heating boiler with efficiency up to 90.5%. It has the largest wood loading chamber compared to other similar products. Equipped with a motherboard and control unit, it allows you to install circulation pumps, 3-way valve motors, accumulation tank control etc, without the need of buying extra items. Also possibility to control everything via internet. Wide power range from 25-55kW.
3938,16 €
3544,34 €

Due to their power range of 25-55 kW, these boilers are superb choice for heating family houses and medium-sized buildings. This intelligent wood boiler combines classic heating with modern technologies. Unique design of the boiler ensures perfect combustion of fuel with maximum heat efficiency of 90%. The boiler control unit controls not only the combustion process, but also all elements of the heating system. No additional expenses for heating circuit control systems or hot water heating are thus necessary. The boiler can be connected online and with the eModul application you can then monitor its operation via mobile phone or PC!

Leaflet

Easy operation

  • The boiler has a large loading chamber and is intended for burning wood even half a meter long (much larger chamber than other similar boilers on market).
  • Simple setting and operation of the boiler, which is already preset to the required output from the factory. All you have to do is set the primary and secondary air flaps to the marked line and you can start heating with certainty of the required output.
  • Boiler output regulation is controlled by fan speed modulation. The output is modulated according to the current and required water temperature in the system in the range from approximately 50 to 100%, when limiting the primary air supply, the output is regulated from approximately one third.
  • Electronic control unit - the control unit can control not only the boiler, but also all elements of the heating system. So you don't have to pay extra for superior modules controlling mixing valves, hot water heating or storage tank. Everything is provided by the boiler control unit itself.
  • Possibility to connect to the web - for an additional fee, the boiler can be connected to the Internet and monitor its operation, history or change settings via phone or PC.
  • The boiler includes a cooling loop that protects the boiler against overheating.
    H425 EKO D MAX H435 EKO D MAX H442 EKO D MAX H449 EKO D MAX H455 EKO D MAX
Outlet/inlet sleeve (male thread)

G1 1/4’
G1 1/4’
G1 1/4’
G1 1/4’
G1 1/4’
Cooling loop connection (female thread)   G 1/2’ G 1/2’ G 1/2’ G 1/2’ G 1/2’
Draining and filling connection (female thread)   G 1/2’ G 1/2’ G 1/2’ G 1/2’ G 1/2’
A – boiler height [mm] 1411 1411 1411 1551 1551
B – boiler depth [mm] 1283 1283 1283 1323 1323
C – boiler width [mm] 670 670 670 670 670
D – flue location [mm] 607 607 607 607 607
E – water inlet location [mm] 102 102 102 102 102
F – water outlet location [mm] 1324 1324 1324 1324 1324
H – cooling loop location [mm] 628 628 628 768 768
J – location of drain valve [mm] 97 97 97 97 97
Boiler body wall thickness (water/flame) [mm] 5 5 5 5 5
Boiler body wall thickness (water) [mm] 3 3 3 3 3
